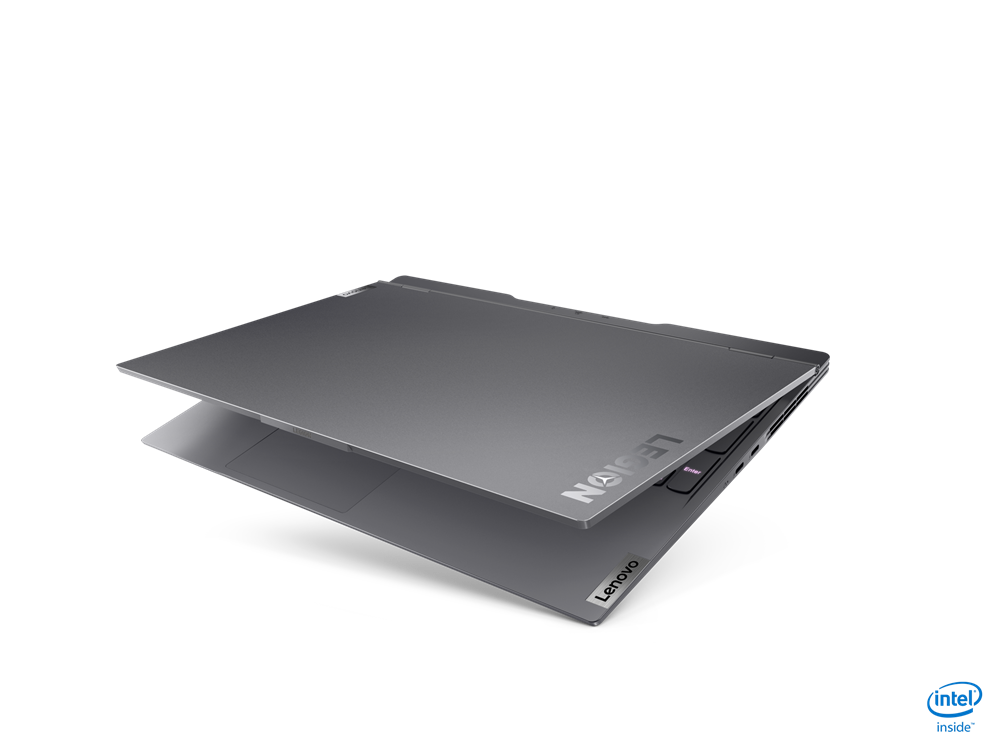

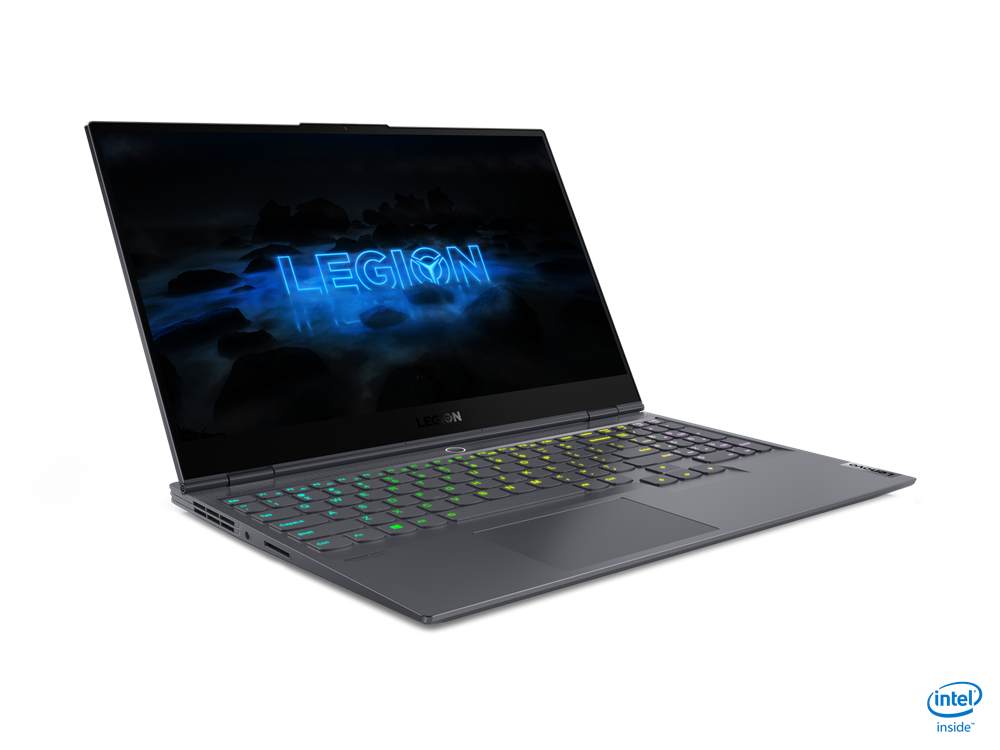

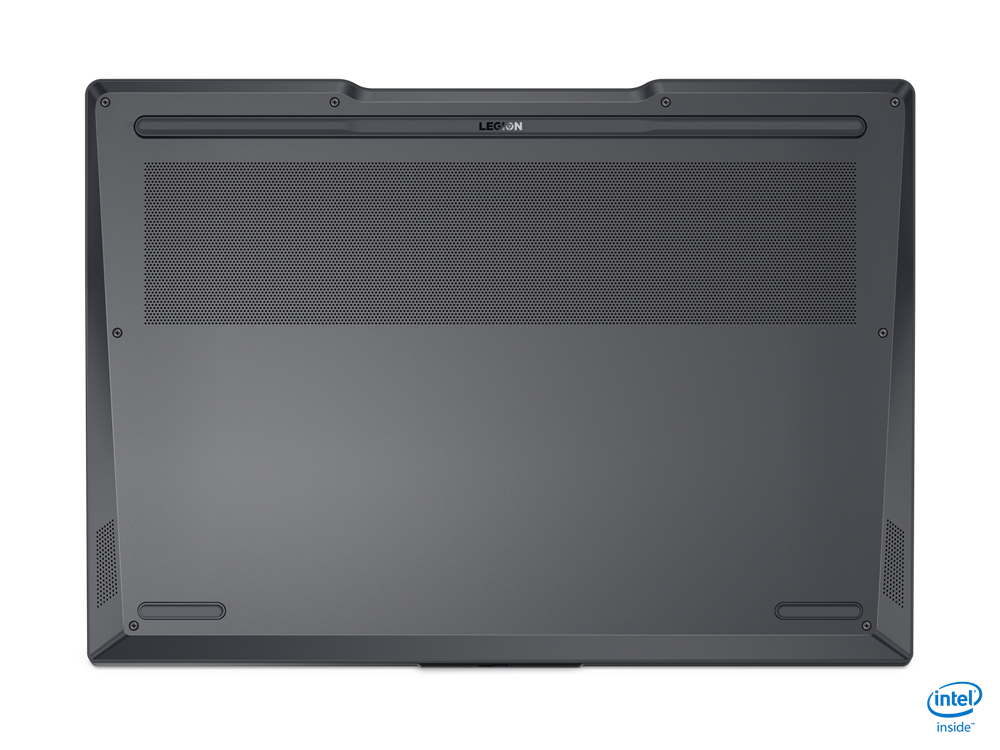

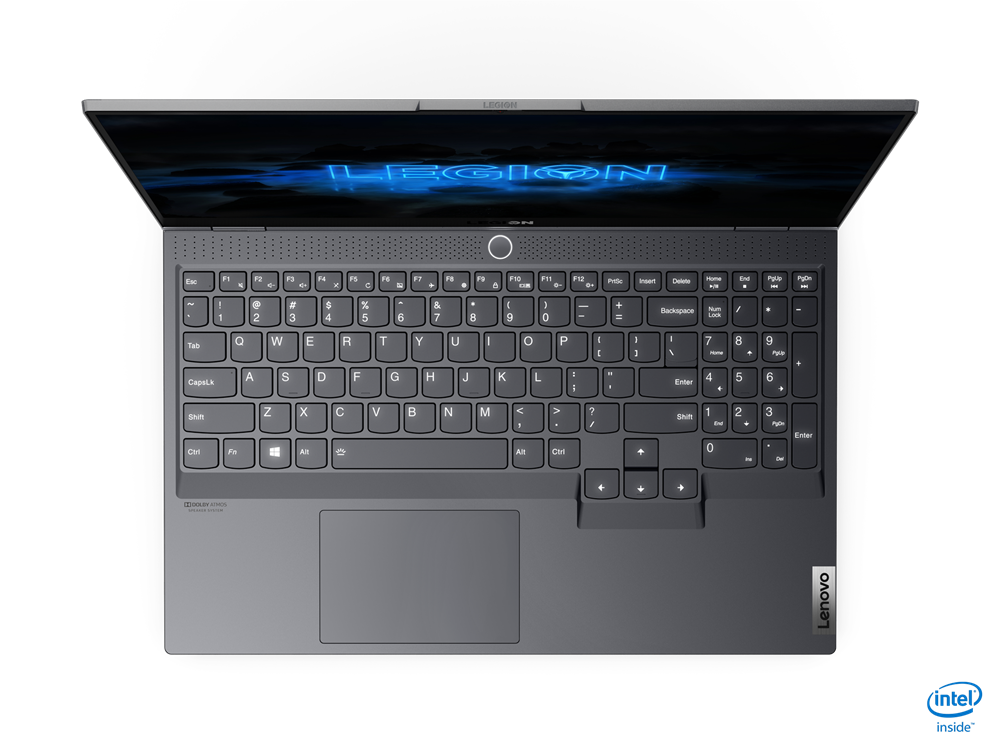

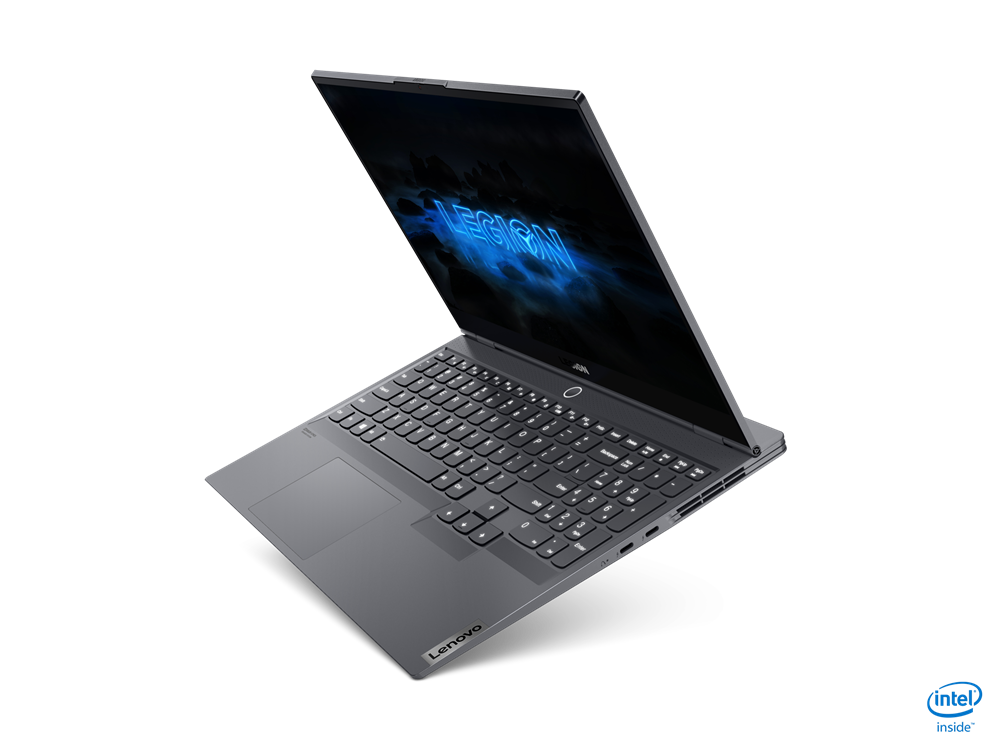

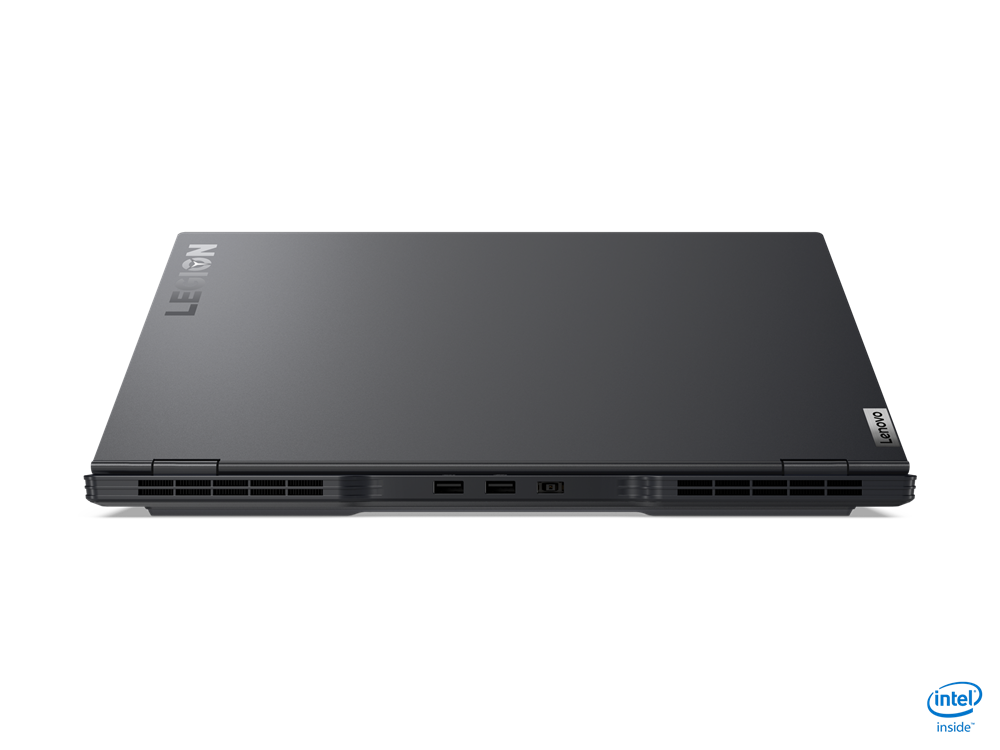

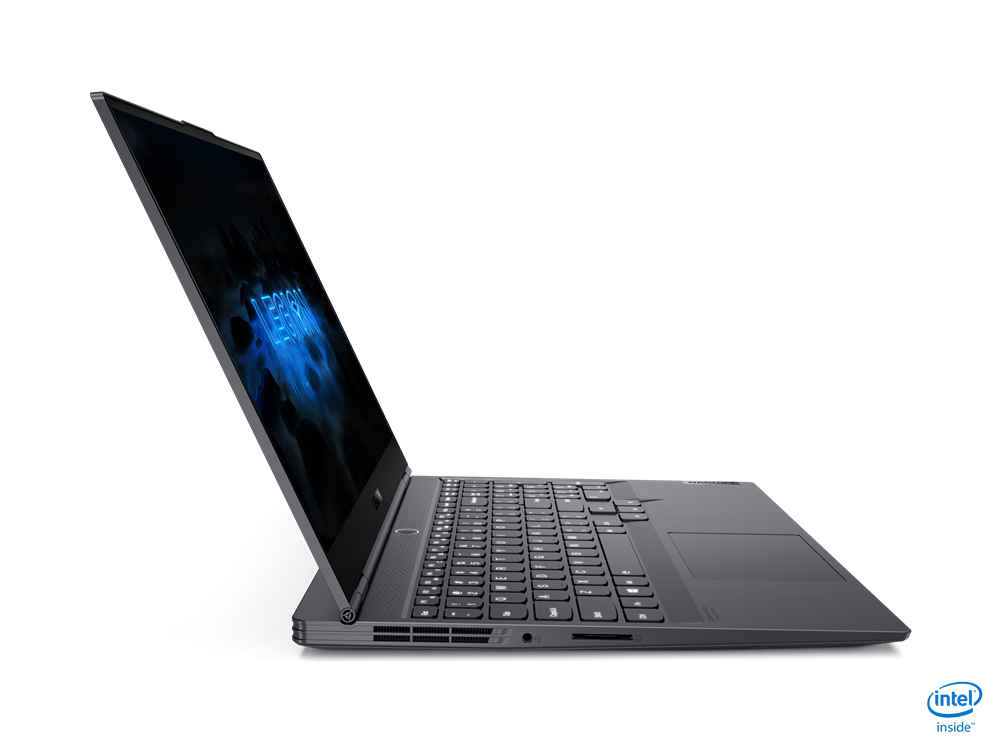

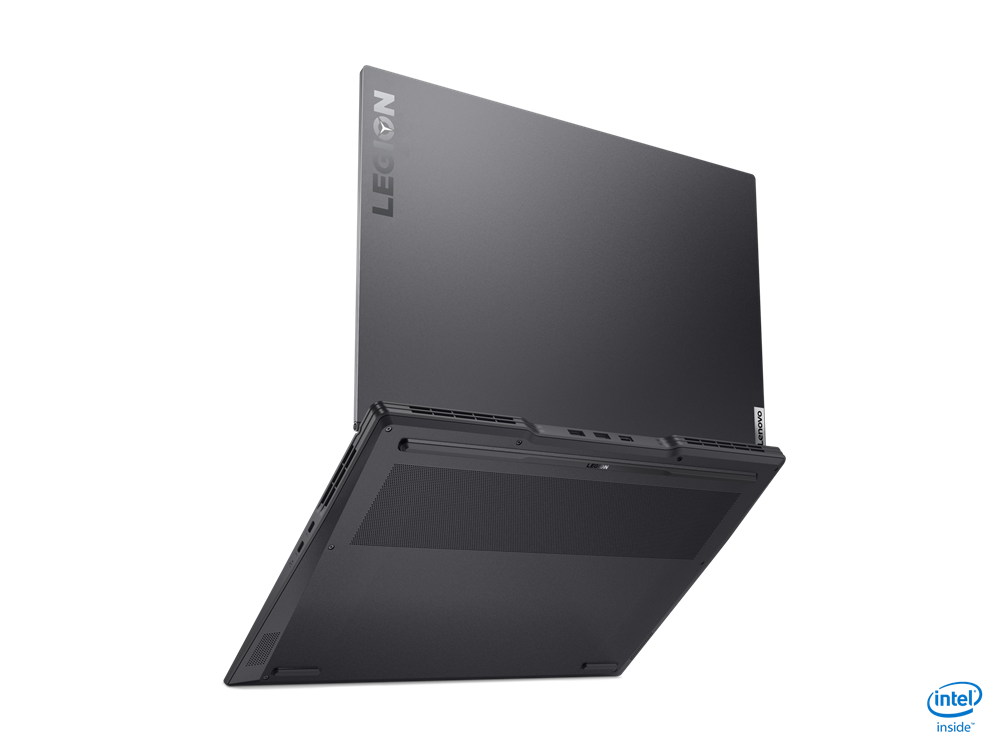

(82BC003SAX) Legion S7 15IMH5 (i7 10750H, 16GB, 1TB SSD, RTX 2060 Max-Q 6GB GDDR6, 15.6" FHD, WIN10)

2061 $

Lenovo Legion S7 15IMH5

PDF

Excel

Part Number : 82BC003SAX

PERFORMANCE
Processor

Intel Core i7-10750H (6C / 12T, 2.6 / 5.0GHz, 12MB)

Graphics

NVIDIA GeForce RTX 2060 Max-Q 6GB GDDR6

Chipset

Intel HM470

Memory

8GB Soldered DDR4-2933 + 8GB SO-DIMM DDR4-2933

Memory Slots

One memory soldered to systemboard, one DDR4 SO-DIMM slot, dual-channel capable

Max Memory

Up to 16GB (8GB soldered + 8GB SO-DIMM) DDR4-2933 offering

Storage

1TB SSD M.2 2280 PCIe 3.0x4 NVMe

Storage Support

Up to two drives, 2x M.2 2280 SSD • M.2 2280 SSD up to 2TB

Card Reader

4-in-1 Card Reader

Optical

None

Audio Chip

High Definition (HD) Audio, ALC3306 codec

Speakers

Stereo speakers, 2W x2, Dolby Atmos speaker system for gaming

Camera

720p with Privacy Shutter

Microphone

2x, Array

Battery

Integrated 71Wh

Max Battery Life

MobileMark 2018: 5.8 hr

Power Adapter

230W Slim Tip

DESIGN
Display

15.6" FHD (1920x1080) IPS 300nits Anti-glare, 144Hz, 100% sRGB, DC dimmer, Dolby Vision

Touchscreen

None

Keyboard

RGB LED Backlit, Arabic

Case Color

Slate Grey

Surface Treatment

Anodizing

Case Material

Aluminium (Top), Aluminium (Bottom)

Dimensions (WxDxH)

356 x 250 x 15.9-17.9 mm (14.01 x 9.84 x 0.6-0.7 inches)

Weight

1.86 kg (4.1 lbs)

SOFTWARE
Operating System

Windows 10 Home 64, Arabic / English

Bundled Software

Office Trial

CONNECTIVITY
Ethernet

None

WLAN + Bluetooth

Killer AX1650 11ax, 2x2 + BT5.1

Standard Ports
  • 1x USB 3.2 Gen 2
  • 1x USB 3.2 Gen 2 (Always On)
  • 2x USB-C 3.2 Gen 2 / Thunderbolt 3 (support data transfer, Power Delivery 100w and DisplayPort 1.4)
  • 1x card reader
  • 1x headphone / microphone combo jack (3.5mm)
  • 1x power connector
Monitor Cable

None

SECURITY & PRIVACY
Fingerprint Reader

Touch Style

Other Security

Camera privacy shutter

SERVICE
Base Warranty

1-year, Depot

Included Upgrade

None

CERTIFICATIONS
Green Certifications
  • ErP Lot 3
  • RoHS

Lenovo Legion S7 15IMH5

PDF

Excel

Part Number : 82BC003SAX

PERFORMANCE
Processor

Intel Core i7-10750H (6C / 12T, 2.6 / 5.0GHz, 12MB)

Graphics

NVIDIA GeForce RTX 2060 Max-Q 6GB GDDR6

Chipset

Intel HM470

Memory

8GB Soldered DDR4-2933 + 8GB SO-DIMM DDR4-2933

Memory Slots

One memory soldered to systemboard, one DDR4 SO-DIMM slot, dual-channel capable

Max Memory

Up to 16GB (8GB soldered + 8GB SO-DIMM) DDR4-2933 offering

Storage

1TB SSD M.2 2280 PCIe 3.0x4 NVMe

Storage Support

Up to two drives, 2x M.2 2280 SSD • M.2 2280 SSD up to 2TB

Card Reader

4-in-1 Card Reader

Optical

None

Audio Chip

High Definition (HD) Audio, ALC3306 codec

Speakers

Stereo speakers, 2W x2, Dolby Atmos speaker system for gaming

Camera

720p with Privacy Shutter

Microphone

2x, Array

Battery

Integrated 71Wh

Max Battery Life

MobileMark 2018: 5.8 hr

Power Adapter

230W Slim Tip

DESIGN
Display

15.6" FHD (1920x1080) IPS 300nits Anti-glare, 144Hz, 100% sRGB, DC dimmer, Dolby Vision

Touchscreen

None

Keyboard

RGB LED Backlit, Arabic

Case Color

Slate Grey

Surface Treatment

Anodizing

Case Material

Aluminium (Top), Aluminium (Bottom)

Dimensions (WxDxH)

356 x 250 x 15.9-17.9 mm (14.01 x 9.84 x 0.6-0.7 inches)

Weight

1.86 kg (4.1 lbs)

SOFTWARE
Operating System

Windows 10 Home 64, Arabic / English

Bundled Software

Office Trial

CONNECTIVITY
Ethernet

None

WLAN + Bluetooth

Killer AX1650 11ax, 2x2 + BT5.1

Standard Ports
  • 1x USB 3.2 Gen 2
  • 1x USB 3.2 Gen 2 (Always On)
  • 2x USB-C 3.2 Gen 2 / Thunderbolt 3 (support data transfer, Power Delivery 100w and DisplayPort 1.4)
  • 1x card reader
  • 1x headphone / microphone combo jack (3.5mm)
  • 1x power connector
Monitor Cable

None

SECURITY & PRIVACY
Fingerprint Reader

Touch Style

Other Security

Camera privacy shutter

SERVICE
Base Warranty

1-year, Depot

Included Upgrade

None

CERTIFICATIONS
Green Certifications
  • ErP Lot 3
  • RoHS
